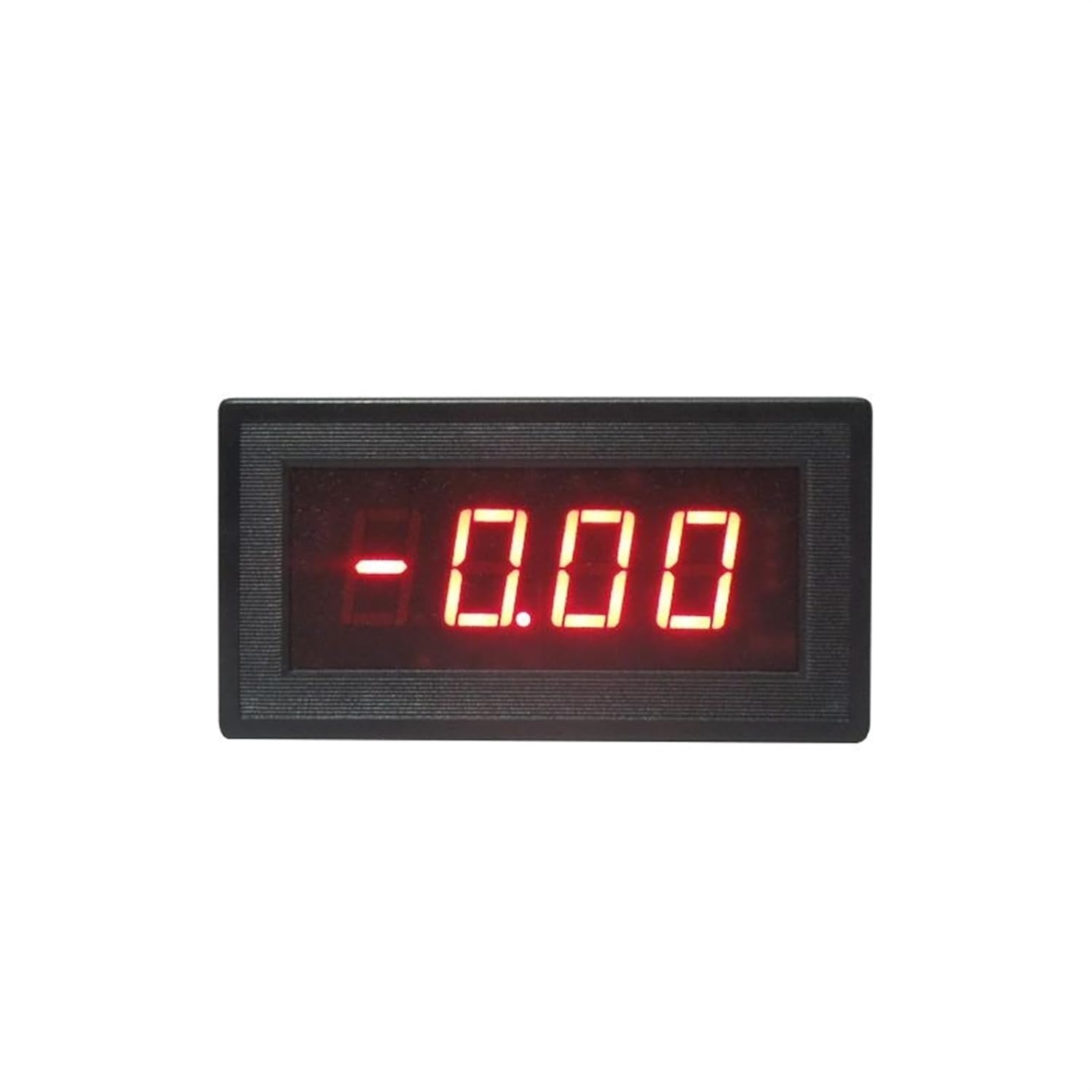

YB5135B Digital DC Current Meter Display 2 20mA 200mA 2A 5A Milliamp Amp Gauge Dc Milliampere Ammeter 1Pcs(Color:Red,Size:DC100A (75mV))
Product details
| Management number | 215532433 | Release Date | 2026/04/12 | List Price | $16.26 | Model Number | 215532433 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

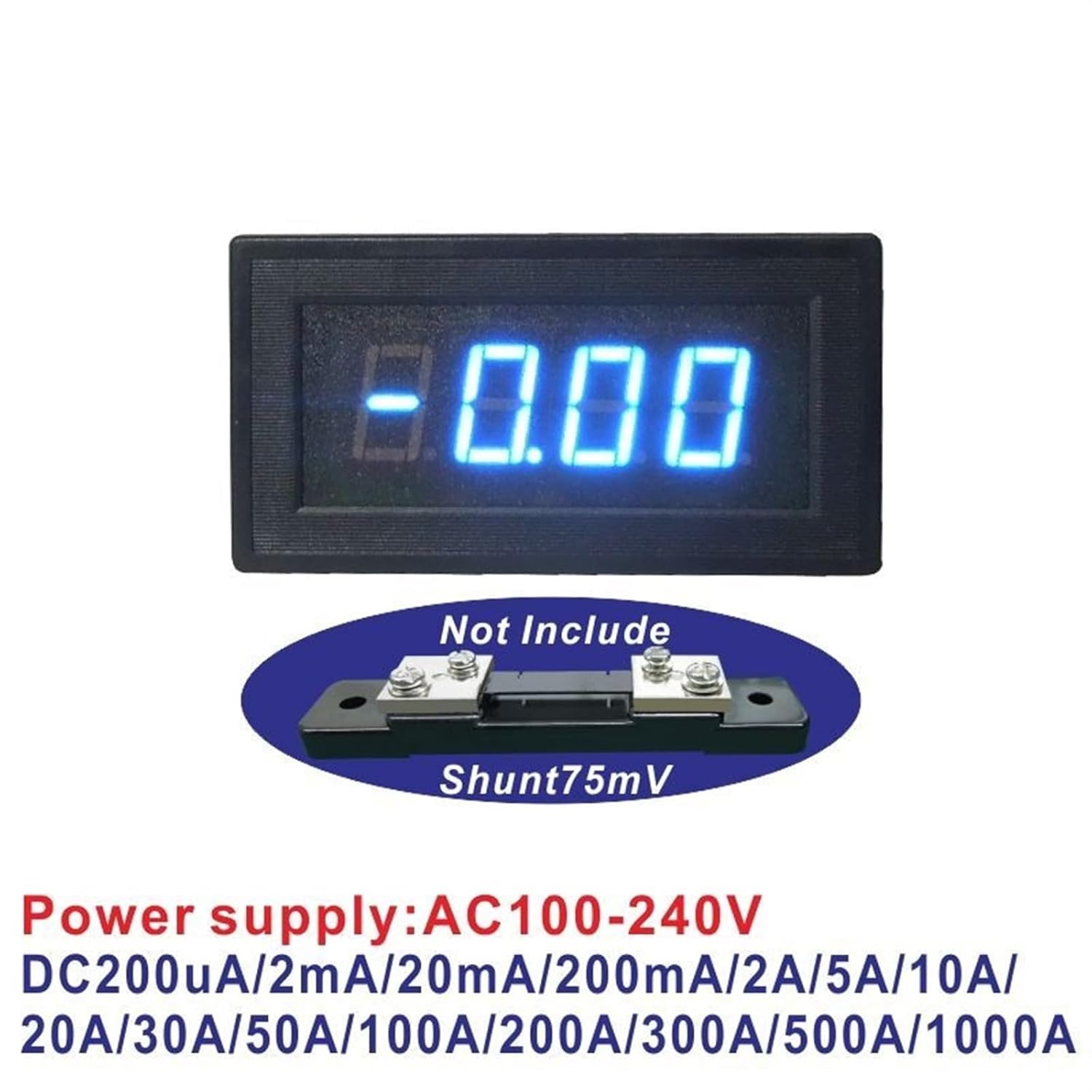

GaugesYB5135B LED Digital DC Current Meter Amp Meter 20mA 200mA 2A 5A 10A 20A 50A 100A 200A 300A Micro Ammeter Power Supply AC100-240VAttention:1.Below 10A or 10A: all direct measurements, built-in sampling resistance, no external shunt or sampling resistance.2.More than 10A: not include a shunt. It is necessary to take ashunt of 75mV to work, even if 0.1 A. Or it will be burnt.3.If you have a shunt ,please note the shunt specification.(75mV is for company's standard)Technical Parameters:Power supply:AC100-240V<;0.5WTest Current:DC200uA/2mA/20mA/200mA/2A/5A/10A/20A/30A/50A/100A/200A/300A/500A/1000ADimension:79*43*25mmMounting hole:76*39.5mmDisplay mode: 0.56 "LED with red/blue digitsMeasurement accuracy: 0.5% ( 2 digits) Measuring speed: 2 times/S Specification:Package Include:1 piece* LED Digital DCCurrentMeterConnection Diagram:Working conditions:Operating temperature: -10 +50 Working humidity: 10 80% (no condensation)Working pressure: 80 106kPa
- Gauges
- Item weight: 0.11 pounds
- Material: paper
| Brand Name | VDPYZANC |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | VDPYZANC |
