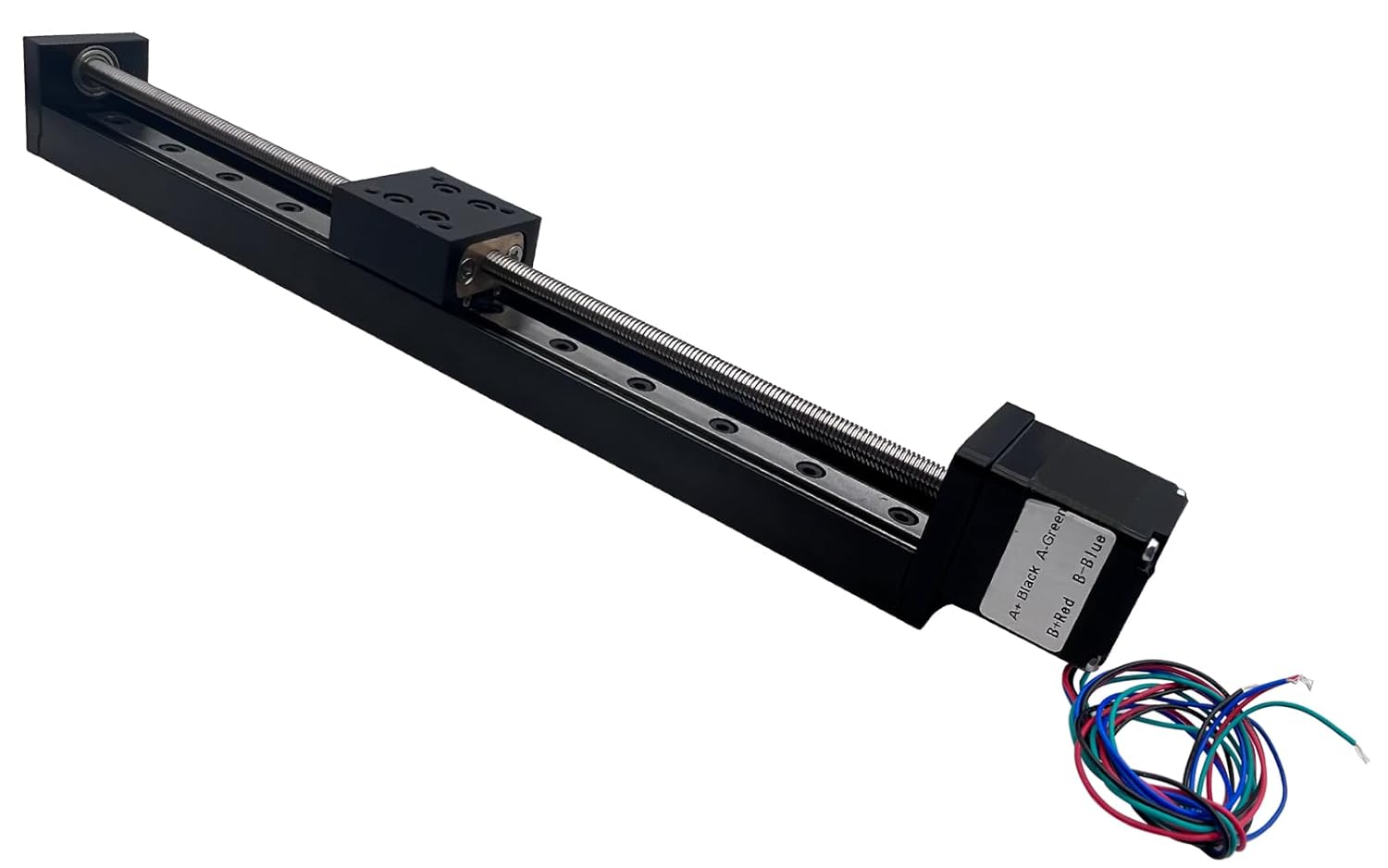

UYGALAXY 10" Stroke Mini Linear Rail Stage Actuator Effective with NEMA11 Stepper Motor + Square Small Slide Table for DIY CNC Router Parts X Y Z Linear (250MM)

"Note: 1. Screw specifications T6*1-250mm, the T6 represents the diameter of the screw 6 mm, the second one represents the screw guide (pitch) 1 mm, the last 250 mm represents the effective stroke of the slide. 2. This slider contains 28 linear motor by default. 3. It can fold horizontal cross, Longmen, three axis and four axis. 4. Make sure you have the drive and controller, no drive and controller stepper motor will not work. Specifications: Screw specification: T6*1 Current: 0.5 A Voltage: DC 24V Motor length: 30 mm Resistance: 5.5 ohm Inductance: 3.2 mH Rotor Inertia: 8 g.cm Step angle: 1.8 degree ±5% Motor flange size: 28 mm Holding torque: 6 N.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Feature: Screw precision: 0.1mm Fastest speed: 10mm/s Maximum load level: ≤ 2.5KG(5.5 lb) Vertical maximum load: ≤1KG(2.2 lb) Linear Stage Actuator Parameter: Effective Travel Length: 250mm Total length :326mm Type: linear system moulde Lead Screw type: T6x1:diameter 6mm and lead 1mm pitch 1mm Package Included: 1 x Linear Stage Actuator 1 x User Manual ( We also have Screw specification T6*2 , T6*4 , T6*6 , T6*12 , if you need , please send us a message )"

• ✅Spec: 24VDC Linear Stage Actuator Stroke Length= 10inch(250mm); Speed: 0-10mm/s, Current:0.5A. Step angle:1.8 degrees, Screw Specification: T6*1.
• ✅Load: Horizontal maximum load capacity: 2.5kg(5.5 lb); Vertical maximum load capacity: 1kg(2.2 lb).
• ✅Feature: With high precision, high efficiency, long life, low coefficient of friction, versatility, etc;
• ✅Widely used: Lightweight and compact motion linear actuator, widely used for DIY CNC Router Parts, inspection equipment, optical laboratory precision measurement, fine-tuning displacement, production machinery, mechanical equipment positioning and movement.
• ✅Package included: 1 Linear Stage Actuator + 1 User Manual
