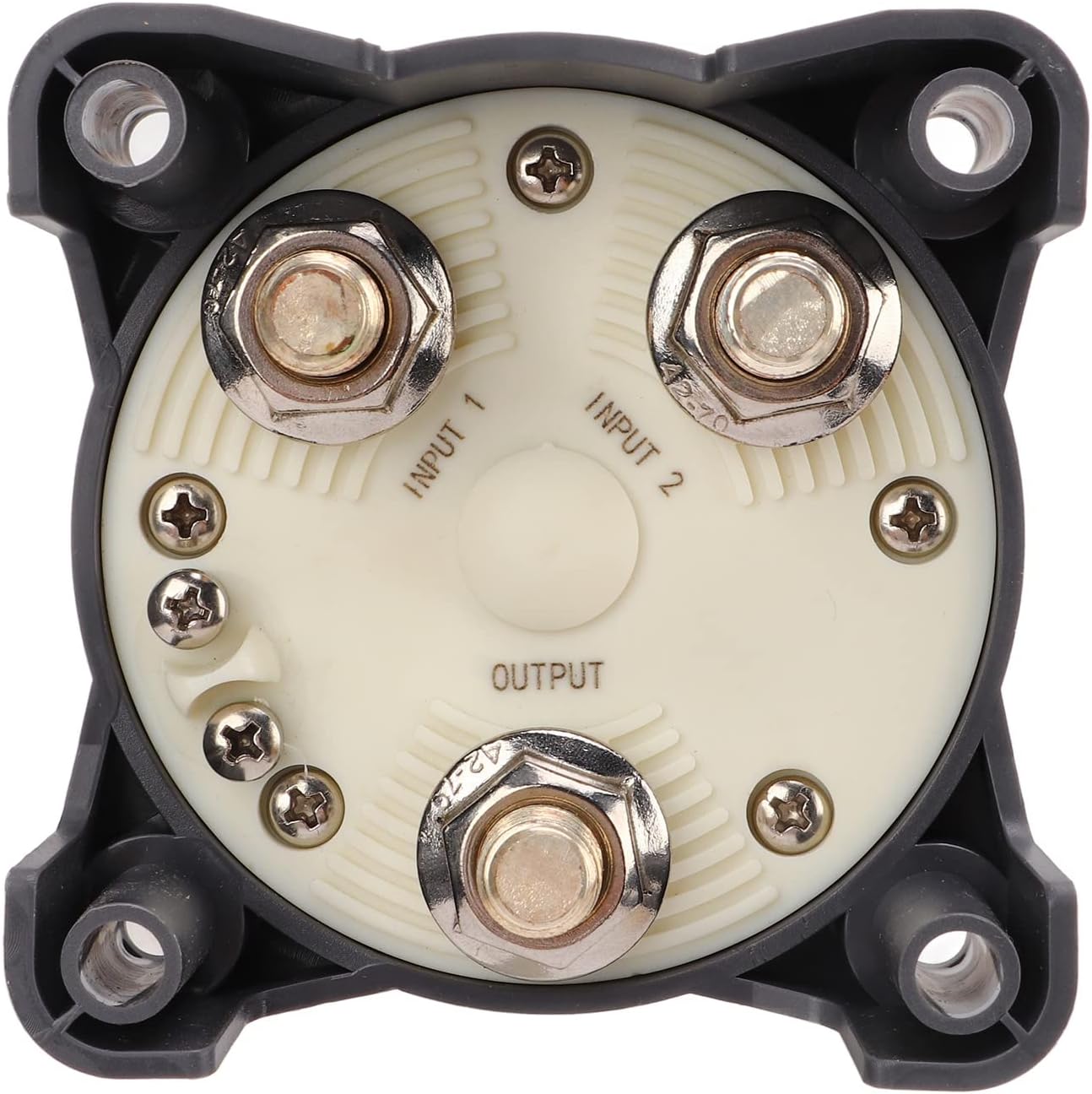

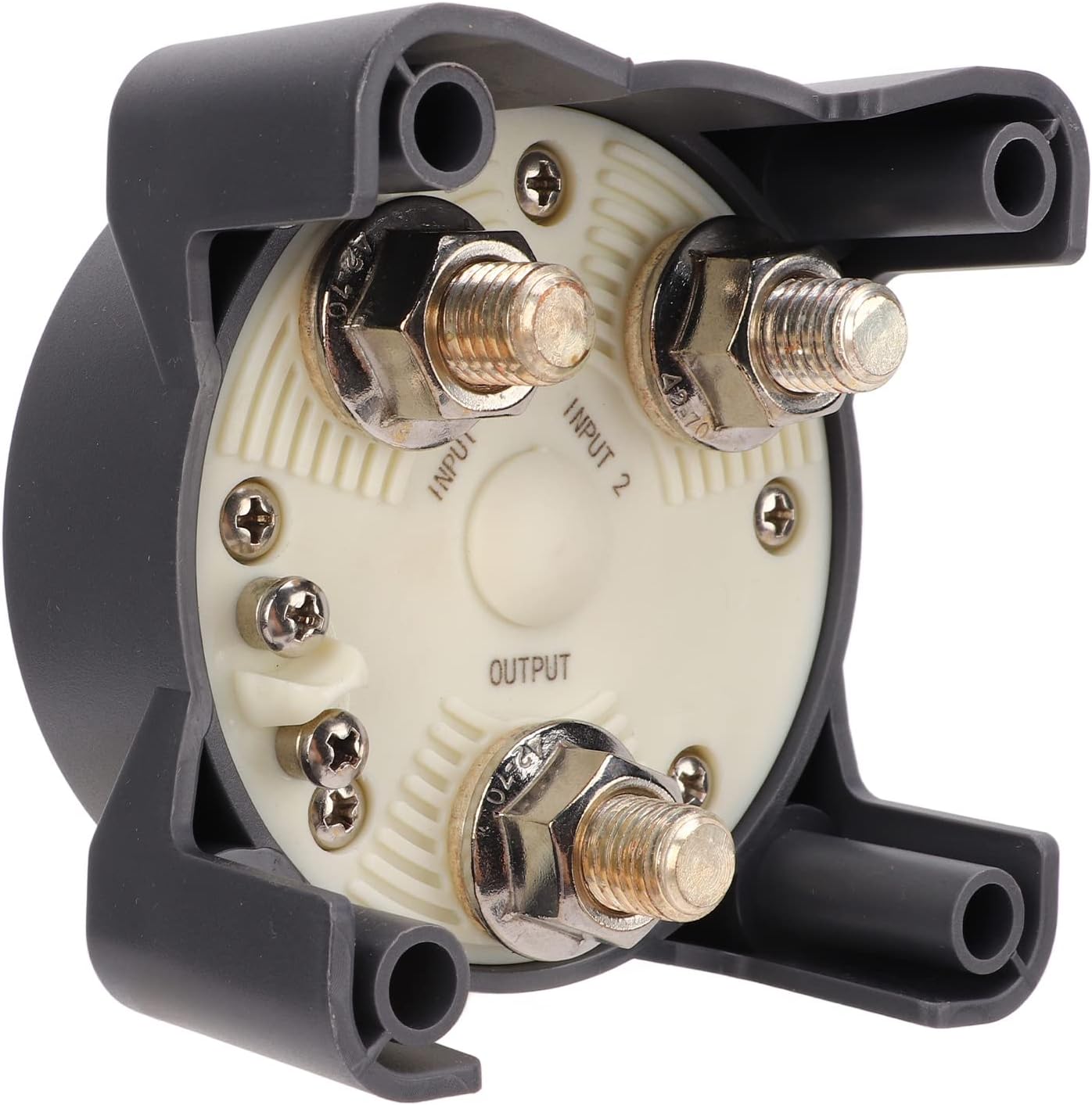

Pilipane 500A Battery Disconnect Switch, Premium 4 Position Marine Battery Cut Off Switch, RV and Boat Battery Switch Heavy Duty 500A Battery Disconnect for RV and Boat

Specification:Item Type: Battery Disconnect SwitchMaterial: ABS, Nickel Plated Red CopperSwitch Type: Heavy Duty Selector 4 Position Battery Switch with AFDSwitch Positions: 4(OFF-1-2-1+2)Battery Combine: YesAlternator Field Disconnect: YesMaximum Voltage: 32V DCTerminal Stud Torsion: 220 in-lb (24.86 Nm)Continuous Rating: 500AIntermittent Rating: 700A (5 min)Cranking Rating 30 sec: 1600ABattery Inputs: 2Cable Clearance For 4/0 AWG Cables: Approx. 27.94 mm/1.10inCable Quantity to Meet Ratings: Two Cables or TerminalCable Size to Meet Ratings: 4/0 AWG (120mm²)Mounting Holes: Accept 1/4in (M6) ScrewStud Material: Tinned CopperTerminal Stud Size: 1/2in (M12) Function: The Make Before Break Contact Design Allows Switching Between Battery Packs Without Interrupting Power SupplyApplication: Ideal for Marine or RVPackage List:1 x Battery Disconnect Switch 4 x Setscrew

• [MAKE BEFORE BREAK DESIGN] The make before break conta ct design allows switching between battery packs without interrupting power supply , with added AFD for safety .
• [PREMIUM MATERIAL] Crafted from premium ABS and nic kel plated red copper material , our marine battery cut off switch is rustproof , sturdy , and long-lasting .
• [EXCELLENT PERFORMANCE] This switch offers good electrical conductivity , is IP66 watertight to avoid water spray , and features ignition conservation for safe and reliables use .
• [SIMPLE INSTALLATION] Installation is a breeze with mounting holes that accept 1/4in (M6) screws and 1/2in (M12) terminal studs , making it convenient and effortless .
• [WIDE APPLICATION] With a 500A continuous rating , this battery switch is suitable for outboard and small petrol or diesels engines , making it ideal for RVs and boats .
