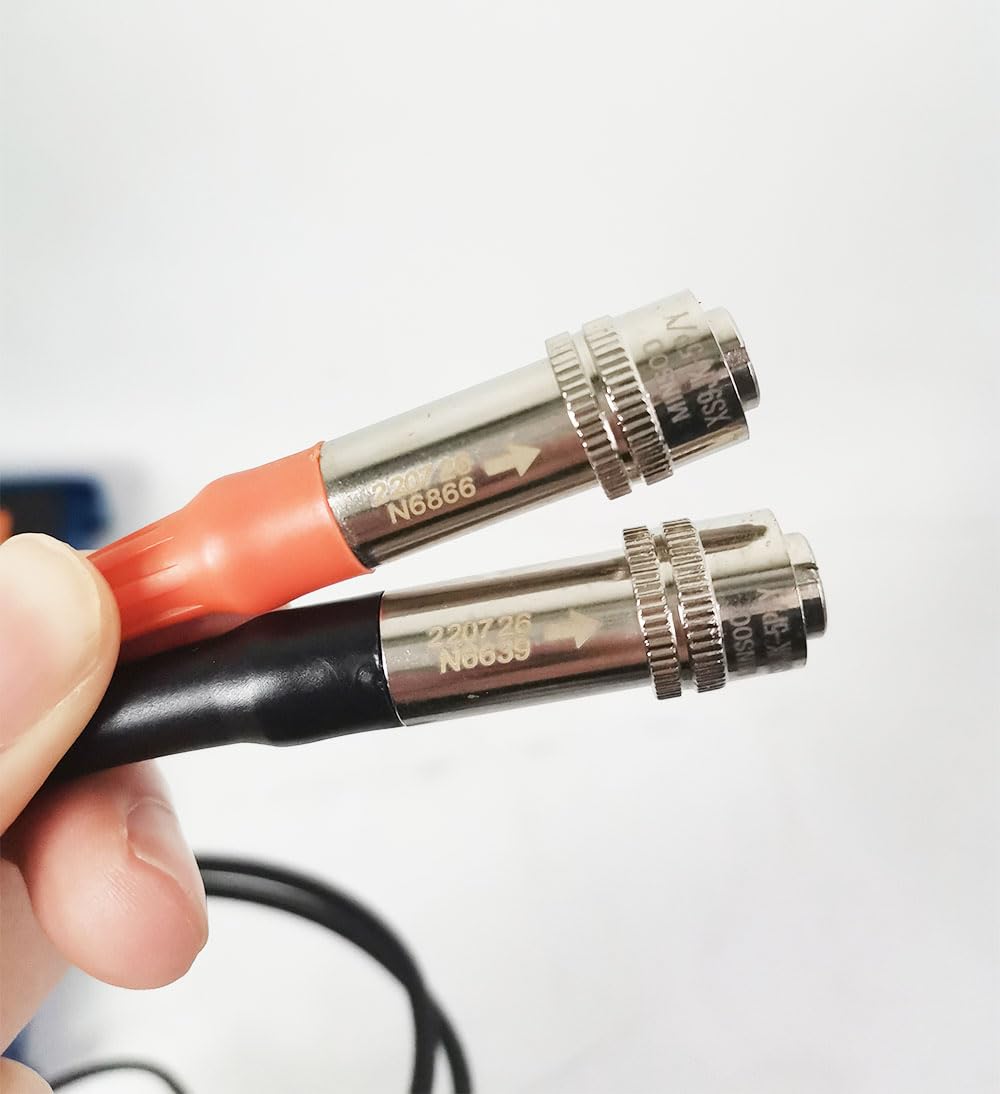

Coating Thickness Gauge Probe Transducer for CM8822 Ferrous and Non-Ferrous F&NF Type Two Measuring Methods Range 0~1000µm/0~40mil Resolution 0.1µm/1µm
Product details
| Management number | 210918295 | Release Date | 2026/04/04 | List Price | $44.00 | Model Number | 210918295 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please note that there is ONLY A PROBE in the package!!!Please note that there is NO Coating Thickness Gauge in the package!!! Principle:♦only for CM-8822 Coating Thickness Gauge Replacement.♦F Type Magnetic Induction(Iron Base)【Applications】Measure the thickness of non-magnetic materials on magnetic materials【Examples】Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc♦NF Type Eddy Current (Aluminium Base)【Applications】Measure the thickness of non-conductive coatings on non-magnetic metals【Examples】Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etcSpecification:♦Principle:F Magnetic Induction & NF Type Eddy Current♦Range:0~1000µm/0~40mil♦Resolution:0.1µm/1µm♦Accuracy:±1~3%n or ±2.5µm♦Standard configuration:A Probe
- Please note that there is ONLY A PROBE in the package!!!
- This probe is only for CM-8822 Coating Thickness Gauge Replacement.
- The F probes measure the thickness of non-magnetic materials on magnetic materials. The N probes measure the thickness of non-conductive coatings on non-magnetic metals.
- Two measuring methods: magnetic induction (F) and eddy current (N)
- F Type Magnetic Induction(Iron Base) -----【Applications】Measure the thickness of non-magnetic materials on magnetic materials -----【Examples】Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc
- NF Type Eddy Current (Aluminium Base) -----【Applications】Measure the thickness of non-conductive coatings on non-magnetic metals -----【Examples】Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc
| Item Weight | 1.1 pounds |
|---|---|
| Manufacturer | HFBTE |
| Item model number | B0FJQVTZ5T |
| Product Dimensions | 6.34 x 2.72 x 1.26 inches |
